Descrizione

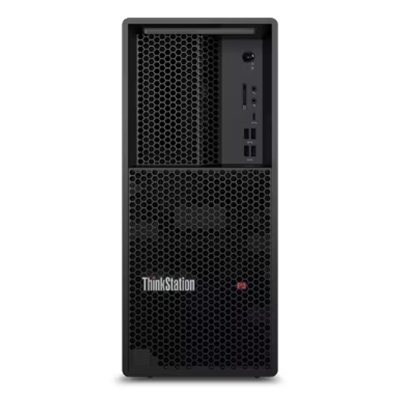

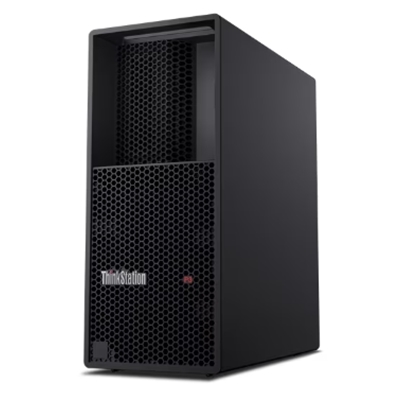

WKS LENOVO THINK P3 TWR 30GS000PIX 27LT I7-13700 32DDR5 1TBSSD W11PRO VGA/RTXA2000-12GB 3YOS TMUSB 9USB HDMI 2DP RJ45
PERFORMANCE
Processor: Intel® Core™ i7-13700, 16C (8P + 8E) / 24T, Max Turbo up to 5.2GHz, P-core 2.1 / 5.1GHz, E-core 1.5 / 4.1GHz, 30MB
Processor Sockets: 1x FCLGA1700
Integrated Graphics: Integrated Intel® UHD Graphics 770
Discrete Graphics: 1x NVIDIA® RTX A2000 12GB
Chipset: Intel® W680 Chipset
Memory: 2x 16GB UDIMM DDR5-4800 Non-ECC
Memory Slots: 4 DDR5 DIMM slots, 2 channels capable
Max Memory: Up to 128GB (4x 32GB DDR5 UDIMM)
M.2 SSD RAID Controller: Integrated NVMe® Controller
M.2 SSD Drive: 1x 1TB SSD M.2 2280 PCIe® 4.0×4 Performance NVMe® Opal
HDD Controller: Onboard Intel® RSTe SATA RAID
SATA/SAS Drive: None
Storage Support: Up to 5 drives (4x HDD + 1x M.2 SSD) or 6 drives (3x HDD + 3x M.2 SSD)
• 3.5″ HDD up to 6TB each
• 2.5″ HDD up to 1TB each
• M.2 SSD up to 4TB or 2TB each (see Storage Type)
Optical: None
Audio Chip: High Definition (HD) Audio, Realtek® ALC897Q-CG codec
Power Supply: 500W Platinum Fixed
DESIGN
Keyboard: USB Traditional Keyboard, Black, Italian
Mouse: USB Calliope Mouse, Black
Expansion Slots:
– One PCIe® 4.0 x16
– One PCIe® 4.0 x16 (x4 lanes)
– Two PCIe® 3.0 x1
M.2 Slots: Up to 3x M.2 SSD:
• 2 via onboard slot, can’t be available when 4th HDD is selected
• 1 via Single M.2 to PCIe® adapter
– One M.2 slot (for WLAN)
Bays: Up to four disk bays:
• Bay 1 supports one 3.5″ / 2.5″ HDD, standard
• Bay 2 supports one 3.5″ / 2.5″ HDD, optional
• Bay 3 supports one 3.5″ / 2.5″ HDD, optional
• Bay 4 supports one 3.5″ / 2.5″ HDD, optional
• Front Access HDD Bay supports one 3.5″ / 2.5″ HDD, optional, occupies Bay 3 location
Dimensions (WxDxH): 180 x 370 x 415 mm (7.09 x 14.57 x 16.34 inches)
Weight: 13.6 kg (29.9 lbs, maximum configuration)
CONNECTIVITY
Onboard Ethernet: Intel® I219-LM, 1x GbE RJ-45
Optional Ethernet: None
WLAN + Bluetooth: None
Card Reader: SD Card Reader
Front Ports:
– 2x USB 3.2 Gen 1
– 2x USB 3.2 Gen 2
– 1x USB-C® 3.2 Gen 2
– 1x headphone / microphone combo jack (3.5mm)
– 1x microphone (3.5mm)
Rear Ports:
– 1x HDMI® 2.1 TMDS
– 2x DisplayPort™ 1.4
– 4x USB 3.2 Gen 1 (one supports Smart Power On)
– 1x Ethernet (RJ-45)
– 1x line-out (3.5mm)
Optional Rear Ports (configured): None
SECURITY & PRIVACY
Security Chip: Discrete TPM 2.0, TCG certified
Physical Locks:
– Kensington® Security Slot™, 3 x 7 mm
– Padlock Loop
Cover Lock: None
Cable Lock: None
Chassis Intrusion Switch: None
MANAGEABILITY
System Management: Intel® vPro® Enterprise with Intel AMT 16
SERVICE
Base Warranty: 3-year, Onsite
Included Upgrade: 1Y Premier Support from 3Y Onsite Windchill bundles (CPN) (5WS1B68726)
Green Certifications:
– EPEAT™ Gold Registered
– ENERGY STAR® 8.0
– ErP Lot 3
– TCO Certified 9.0
– RoHS compliant
ISV Certifications: Please visit ISV certifications for Lenovo® Workstations
SOFTWARE
Operating System: Windows® 11 Pro, WE (EN/FR/DE/NL/IT)
Bundled Software: None
