Descrizione

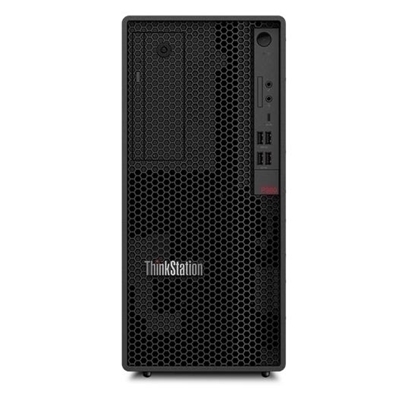

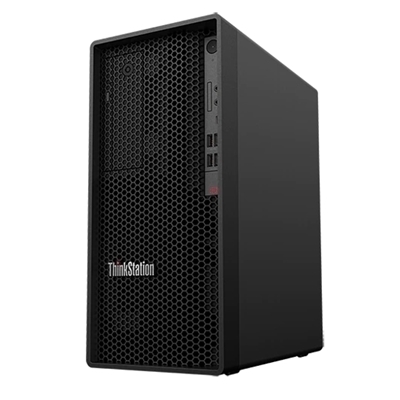

WKS LENOVO THINKSTATION P360 TWR 30FM0007IX 20LT I5-12400 16DDR5 512SSD W11PRO 3YOS TMUSB 9USB HDMI 2DP RJ45 TPM
PERFORMANCE
Processor: Intel® Core™ i5-12400, 6C (6P + 0E) / 12T, P-core 2.5 / 4.4GHz, 18MB
Processor Sockets: 1x FCLGA1700
Integrated Graphics: Integrated Intel® UHD Graphics 730
Discrete Graphics: None
Chipset: Intel® W680 Chipset
Memory: 16GB UDIMM DDR5-4800 Non-ECC
Memory Slots: 4x DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 128GB (4x 32GB DDR5 UDIMM)
M.2 SSD RAID Controller: Onboard Intel® RSTe PCIe®
M.2 SSD Drive: 1x 512GB SSD M.2 2280 PCIe® 4.0×4 Performance NVMe® Opal
HDD Controller: Onboard Intel® RST SATA RAID
SATA/SAS Drive: None
Storage Support: Up to 2x 3.5″ SATA HDD or 4x 2.5″ SATA HDD; also supports up to 3x M.2 SSD (2 by onboard, 1 by M.2 to PCIe® adapter):
• 3.5″ HDD up to 4TB each
• 2.5″ HDD up to 1TB each
• Onboard M.2 SSD up to 4TB each
• M.2 SSD by M.2 to PCIe adapter up to 2TB
Optical: None
Audio Chip: High Definition (HD) Audio, Realtek® ALC897Q-CG codec
Power Supply: 500W Platinum Fixed
DESIGN
Keyboard: USB Traditional Keyboard, Black, Italian
Mouse: USB Calliope Mouse, Black
Expansion Slots:
– 1x PCIe® 4.0 x16
– 1x PCIe® 4.0 x16 (x4 lanes)
– 2x PCIe® 3.0 x1 (open ended)
M.2 Slots: Up to 3x M.2 SSD:
• 2 via onboard M.2 PCIe® Gen 4 slots
• 1 via Single M.2 to PCIe adapter, PCIe Gen 3
– 1x M.2 slot for WiFi
Bays:
– 1x 3.5″ disk bay (standard)
– 1x 3.5″ disk bay (optional)
– 2x 2.5″ disk bay (optional)
Dimensions (WxDxH): 170 x 315.4 x 376 mm (6.7 x 12.4 x 14.8 inches)
Weight: 9.67 kg (21.32 lbs, maximum configuration)
CONNECTIVITY
Onboard Ethernet: Intel® I219-LM, 1x GbE RJ-45
Optional Ethernet: None
WLAN + Bluetooth: None
Card Reader: None
Front Ports:
– 1x USB-C® 3.2 Gen 2 (support data transfer)
– 2x USB 3.2 Gen 1
– 2x USB 3.2 Gen 2
– 1x headphone / microphone combo jack (3.5mm)
– 1x microphone (3.5mm)
Rear Ports:
– 4x USB 3.2 Gen 1 (one supports Smart Power On)
– 1x HDMI® 2.1 TMDS
– 2x DisplayPort™ 1.4
– 1x Ethernet (RJ-45)
– 1x line-out (3.5mm)
Optional Rear Ports (configured): None
SECURITY & PRIVACY
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks:
– Kensington® Security Slot™, 3 x 7 mm
– Padlock Loop
Cover Lock: None
Cable Lock: None
Chassis Intrusion Switch: None
MANAGEABILITY
System Management: Non-vPro®
SERVICE
Base Warranty: 3-year, Onsite
Included Upgrade: None
Green Certifications:
– ENERGY STAR® 8.0
– EPEAT™ Gold Registered
– ErP Lot 3
– TCO Certified 9.0
– RoHS compliant
ISV Certifications: Please visit ISV certifications for Lenovo® Workstations
Mil-Spec Test: MIL-STD-810H military test passed
SOFTWARE
Operating System: Windows® 11 Pro, WE (EN/FR/DE/NL/IT)
Bundled Software: None
