Descrizione

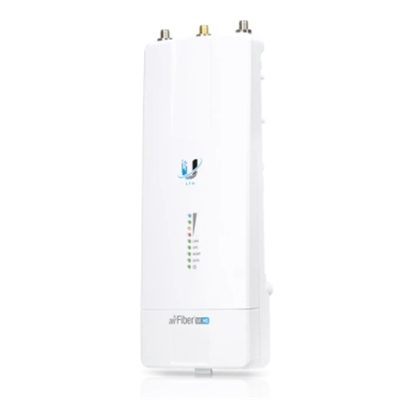

AIRFIBER 5X HD UBIQUITI AF-5XHD 1,5GHZ 1GBPS CONNETTORIZZATO
Mechanical
Dimensions: 224 x 82 x 48 mm (8.82 x 3.23 x 1.89″)
Weight: 0.35 kg (0.77 lb)
Mounting:
– airFiber X Mount (Rocket Mount Compatible)
– GPS Pole Mount (Included)
Weatherproofing: IP67
Hardware
Processor: LTU IC

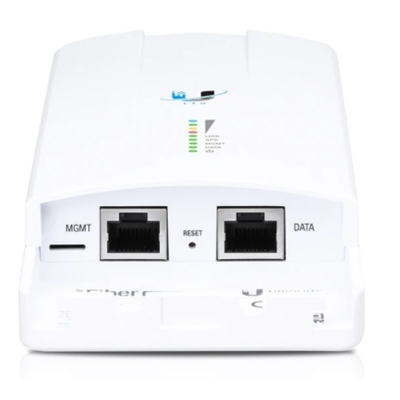

Data Port: (1) 10/100/1000 Ethernet Port
Configuration Port: (1) 10/100/1000 Ethernet Port
GPS: External, Magnetic Base
Power Supply: 24V, 1A PoE Gigabit Adapter (Included)
Power Method: Dual Passive Power over Ethernet
Maximum Power Consumption: 12W
Supported Voltage Range: 20-50VDC
Operating Temperature: -40 to 55° C (-40 to 131° F)
Certifications: FCC
Software
Maximum Throughput: 1+ Gbps
Maximum Range: 200+ km (Throughput and range values may vary depending on the environmental conditions)
Encryption: 128-bit AES
Operating System: airOS
Radio Frequency
Max TX Power: 29 dBm (Dependent on Regulatory Region)
Frequency Accuracy:
– ± 2.5 ppm without GPS Synchronization
– ± 0.2 ppm with GPS Synchronization
Channel Bandwidth:
– 10/20/30/40/50/60/80/100 MHz Selectable
– Programmable Uplink and Downlink Duty Cycles
Operating Frequency (MHz)
Worldwide: 4800 – 6200
US/CA:
– U-NII-1: 5150 – 5250
– U-NII-2A: 5250 – 5350
– U-NII-2C: 5470 – 5725
– U-NII-3: 5725 – 5850
