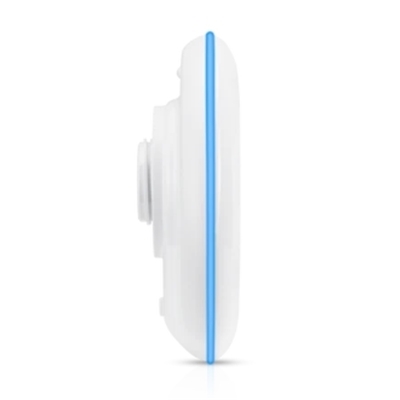

BUILDING BRIDGE UBIQUITI UBB-EU UNIFI 60GHZ/5GHZ PTP BRIDGE KIT WITH 1GBPS+ THROUGHPUT

Descrizione

BUILDING BRIDGE UBIQUITI UBB-EU UNIFI 60GHZ/5GHZ PTP BRIDGE KIT WITH 1GBPS+ THROUGHPUT

Contiene 2 antenne

A 60 GHz wireless point-to-point bridge.
500 m (1,640 ft) maximum range
60 GHz & 5 GHz dual-radio redundancy
Includes PoE power adapters
Built-in LED alignment indicators
Sold as 2-pack

Mechanical
Dimensions: 140 x 140 x 90 mm (5.51 x 5.51 x 3.54″)
Weight: 376 g (13.3 oz)
Enclosure: UV-Resistant Polycarbonate
Mounting:
– Pole-Mount (Kit Included)
– Wall-Mount (Not Included)
Wind Loading: 56 N @ 200 km/h (12.6 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)

Hardware

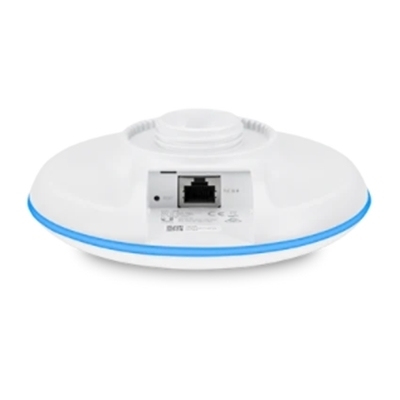

Networking Interfaces: (1) 10/100/1000 Ethernet Port
Management Interfaces: Bluetooth
Antenna Gain:
– 2.4 GHz (BLE): 2 dBi
– 5 GHz: 10 dBi
– 60 GHz: 17.2 dBi
GPS: Yes
Max. TX Power:
– 5GHz: 25 dBm
– 60GHz: 32 – 36.5dBm
60 GHz Elevation Beamwidth: 30°
60 GHz Azimuthal Coverage: ±60°
Power Method:
– PoE Supported
– Passive PoE (48V)
Power Supply:
– UniFi PoE Switch
– 48V, 0.32A Gigabit PoE Adapter (Included)
Max Power Consumption: 11W
ESD/EMP Protection: ± 24kV Contact/Air
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

Operating Frequency (MHz)
Worldwide:
– 5150 – 5875
– 57,000 – 66,000
US/CA:
– U-NII-1: 5150 – 5250
– U-NII-3: 5725 – 5850
– 57,000 – 66,000

Bluetooth (MHz)
Worldwide: 2400 – 2483.5
