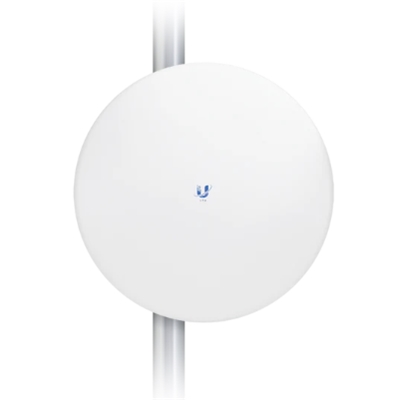

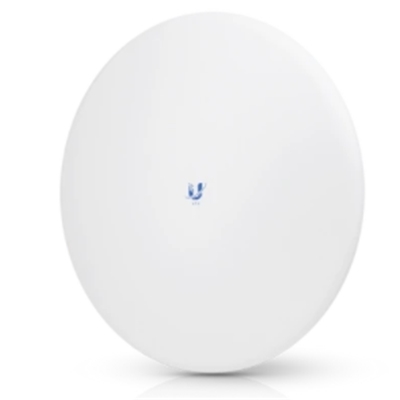

CLIENT RADIO 5GHZ UBIQUITI LTU-PRO CON PREST. RF AVANZATE – LARGHEZZA DI BANDA DEL CANALE 10/20/30/40/50 MHZ

Descrizione

CLIENT RADIO 5GHZ UBIQUITI LTU-PRO CON PREST. RF AVANZATE – LARGHEZZA DI BANDA DEL CANALE 10/20/30/40/50 MHZ

Mechanical
Dimensions: 316.5 x 316.5 x 174.3 mm (12.46 x 12.46 x 6.86″)
Weight: 1.3 kg (2.87 lb)
Enclosure: Outdoor UV Stabilized Plastic
Wind Loading: 150 N @ 200 km/h (33.72 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)

Hardware
Networking Interface: (1) 10/100/1000 Ethernet Port
Max. Power Consumption: 9W
Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 😎
Voltage Range: 22 -26V
Max. Conducted TX Power: 22 dBm (per Chain)
Gain: 24 dBi
Beamwidth: 14°
Sidelobe Level: -10 dB
Front-to-Back Ratio: 27 dB

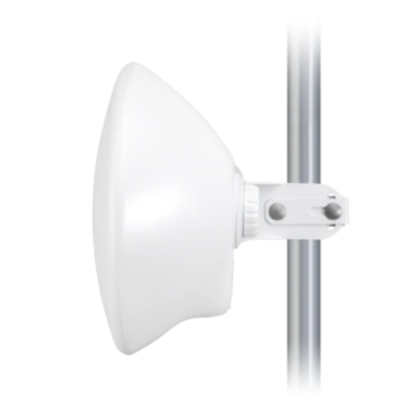

Mounting: Pole-Mount (Kit Included)
ESD/EMP Protection: ± 24kV Contact/Air
Operating Temperature: ‐40 to 60° C (‐40 to 140° F)
Operating Humidity: 10 -90% Noncondensing
Certifications: CE, FCC, IC

Operating Frequency (MHz)
Worldwide:
– 2400 -2483.5
– 4800 -6200
US/CA:
– U-NII-1: 5150 -5250
– U-NII-2A: 5250 -5350
– U-NII-2C: 5470 -5725
– U-NII-3: 5725 -5850
EU:
– 2400 -2483.5
– 5150 -5875
